Industries must choose the right vacuum technology as cleanliness, efficiency, and consistent vacuum performance are critical for many processes. There are many vacuum pumps available, but dry rotary vane pumps have gained significant popularity due to their clean operation, low maintenance requirements, and reliable performance across a range of applications.
At Mechvac, MTD Series Dry rotary vane pumps are used in packaging, manufacturing, and precision industries as they offer a practical solution for processes where oil contamination must be minimized while maintaining stable vacuum output.

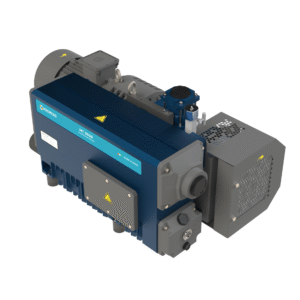

What Are Dry Rotary Vane Pumps?
Dry rotary vane pump is a type of positive displacement vacuum pump that operates without oil in the compression chamber. Similar to traditional rotary vane pumps, they use a rotating rotter which is fitted with vanes that slide in and out to trap and compress air.
Although the key difference lies in their “dry” operation, which means no oil is used inside the pumping chamber for sealing or lubrication.
Instead, the MTD Series of dry rotary vane vacuum pumps from Mechvac relies on specially engineered materials and design to maintain performance and durability without the need for oil-based sealing. This makes them ideal for applications where a clean vacuum is necessary.
How Do Dry Rotary Vane Pumps Work?
Dry rotary vane pumps have a similar working principle to the standard rotary vane pumps. Once the rotor starts rotating inside the housing, the centrifugal force pushes the vanes outward. This creates chambers that trap air and move it from the inlet to the outlet, gradually compressing and expelling it.
Unlike MT Series oil-sealed rotary vane pumps, there is no oil involved in the compression chamber of the dry rotary vane pump, which means:
- There is minimal risk of oil contamination
- Maintenance requirements are reduced
- Exhaust air is cleaner
- System design becomes simpler in some applications
This makes dry vacuum vane pumps a preferred choice for industries that want clean processes and reduced servicing.
Key Advantages of Mechvac MTD Series Dry Rotary Vane Pumps
- Clean and Oil-Free Operation
The biggest benefit of dry rotary vane pumps is their oil-free operation. Since no oil is present in the pumping chamber, there is no risk of oil backflow or contamination. This point is crucial for industries like food processing, pharmaceuticals, and electronics.
- Consistent Performance
Dry rotary vane vacuum pumps provide stable vacuum performance across standard operating ranges. They are ideal for applications that require moderate vacuum levels with reliable and repeatable output.
- Low Maintenance Requirements
Dry vacuum vane pumps don’t require oil changes, lubrication systems, or oil disposal which means they also require less maintenance as compared to oil-sealed rotary vane pumps.
- Environmentally Friendly
Since these rotary vane pumps don’t use oil in the compression chamber, they eliminate the need for oil disposal and reduce environmental impact. Cleaner exhaust usually contributes to safer working environments.
- Compact and Easy to Install
Dry rotary vane pumps are usually compact and easy to integrate into existing systems. As rotary vane pump manufacturers, we create them in simple designs so that they are suitable for both standalone use and system integration.
Applications of Mechvac’s MTD Series Dry Rotary Vane Pumps
Dry rotary vane pumps are used in several industries where clean vacuum and reduced maintenance are important. Some of the common applications include:
- Vacuum Packaging
Ideal for handling sensitive components where contamination must be avoided.
- Packaging Industry
Dry rotary vane vacuum pumps are used in vacuum packaging processes where clean operation is required to maintain product quality and hygiene.
- Medical and Laboratory Equipment
Dry rotary vane pumps are used in suction systems, sample handling, and research applications requiring clean vacuum conditions.
- Automation and Material Handling
Used in pick-and-place systems and vacuum lifting applications.
- Printing and Paper Handling
Dry rotary vane pumps support sheet separation and material handling without introducing contaminants.
Apart from this our MTD Series dry rotary vane pumps are used in vacuum packaging, vacuum conveying, freeze drying, vacuum degassing, tyre manufacturing, vacuum lifting and handling amongst other things.
As rotary vane pump manufacturers, we know the capability and versatility of the MTD Series dry rotary vane pumps. So, we often suggest them to our clients for both industrial and commercial applications.
MTD Series Dry Vacuum Pump vs MT Series Oil-Sealed Rotary Vane Vacuum Pumps: What’s the Difference?
Both the pumps run on similar mechanical principles, but the key difference lies in lubrication and performance characteristics.
Dry Rotary Vane Pumps:
- No oil in the compression chamber
- Lower maintenance
- Cleaner operation
- Suitable for moderate vacuum levels
Oil-Sealed Rotary Vane Pumps:
- Use oil for sealing and lubrication
- Require regular oil maintenance
- Can achieve deeper vacuum levels
- Suitable for heavy-duty and continuous applications
Choosing between the two often depends on your process requirements, vacuum level needs, and maintenance preferences.
When Should You Choose Mechvac MTD Series Dry Rotary Vane Pump?
You should choose our dry rotary vane pumps when:
- Dry operations is required
- Need stable vapor handling
- Stable vacuum levels are sufficient
- Maintenance needs should be minimal
- The process environment is relatively clean
Although for applications requiring a very deep vacuum or handling heavy moisture or vapor loads, oil-sealed or alternative technologies are more suitable.
As rotary vane pump manufacturers, we often suggest the best option to our clients once they share their process requirements with us.
Maintenance and Best Practices
Mechvac MTD Series Dry vacuum pumps don’t require a lot of maintenance, but regular checks are still essential to ensure long-term performance.
Recommended practices include:
- Inspecting vanes for wear over time
- Monitoring pump temperature and noise levels
- Keeping filters clean to maintain airflow
- Ensuring proper ventilation during operation
Following these steps will help to maintain the efficiency of the vacuum vane pumps. Regular checks also help to prevent unexpected downtime.
Choosing the Right MTD Series Dry Rotary Vane Vacuum Pump
Selecting the right pump requires understanding your application in detail. Some of the things to consider are:
- Required vacuum level
- Operating hours
- Flow rate or pumping speed
- Process environment (dust, moisture, etc.)
- Integration with existing systems
Mechavac’s MTD Series dry vacuum pumps are better than regular dry rotary pumps because they offer better vapor handling, have lower vane wear, higher reliability and lower lifecycle cost.
Mechvac MTD Series Dry vacuum pumps offer a clean, efficient, and low-maintenance solution for industries that require reliable vacuum. Whether you are upgrading your existing setup or installing a new system, dry rotary vane pumps provide a balance of performance, cleanliness, and long-term efficiency.
